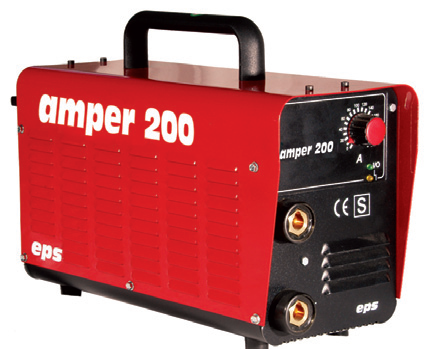

Amper 200

COD: E9AMP200

1.245,00

product description

The high output current values at duty cycle 60% and the width of the adjustment range allow the user to quickly and precisely define the parameters in relation to the specific work requirement and their own habits in heavy-duty industrial use. Solid, robust and efficient, the systems in the series can also be used in tig welding with smear initiation and can be connected to motor generators, preferably diesel-powered.

Usable electrodes:
AWS E6013
AWS E7018
AWS 92.18
AWS 61.30 STAINLESS STEEL E308L
AWS 63.30 STAINLESS STEEL E316L

TIG ø 0.8 - 1.0 - 1.6 - 2.4

Technical Specifications

Input Voltage and Frequency:

400V (3ph) 50/60 Hz

Cos:

0.9

Efficiency:

0.88

Current range (A):

1 – 220

Open circuit Voltage (V)

60

Duty Cycle > 60% (A):

220

Duty Cycle > 100% (A):

190

Input Power > 60% (KVA):

8.4

Input Power > 100% (KVA):

6.8

Input Current > 60% (A):

13.3

Input Current > 100% (A):

11

Electrode Diameter:

Max 4 (5)

Electrodes Type:

R-B-I

Protection Class - Insulation Class:

IP23 - H

Weight (kg):

9

Dim.cm (LxWxH):

17x28x40

Norms EN:

EN 60974-1 EN 60974-10
